Nominal operating   voltage  Un

220

V

Max continuous operating voltage Uc(AC50~60Hz)

320

V

DC Breakdown Voltage (100V/s)

≥500

V

Voltage Protection Level  Up（6kV@1.2/50µS、25kA@8/20µS）

≤2.0

kV

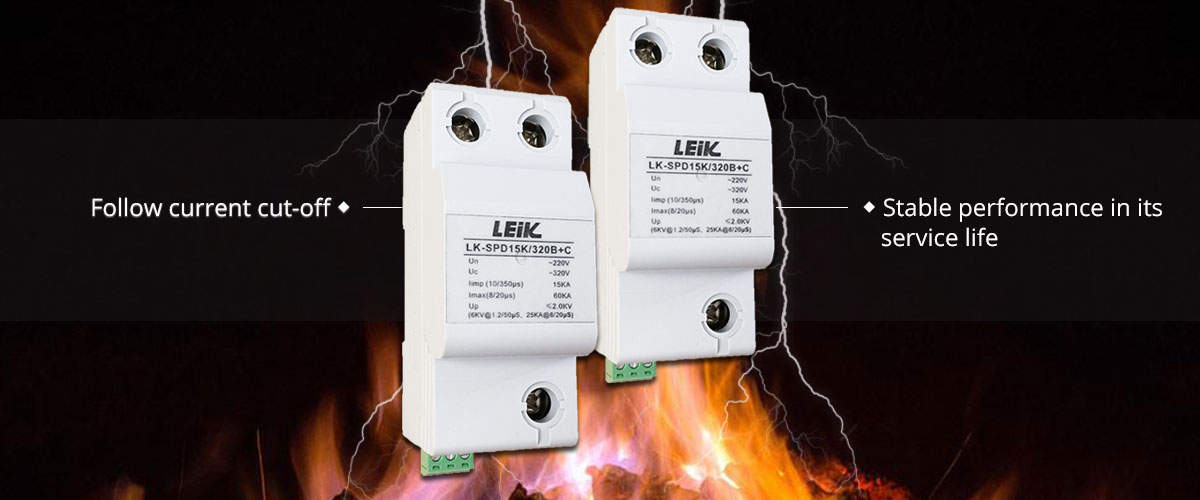

  Follow current cut-off ability If (AC50~60Hz)

500

Arms

ClassⅠ(符合IEC61643-11)

Nominal impulse discharge   current 8/20 µS

20

kA

Nominal impulse discharge   current 10/350 µS

12.5

kA

ClassⅡ(符合IEC61643-11)

Nominal impulse discharge current In8/20 µS

30

kA

Max impulse discharge current Imax 8/20 µS

60

kA

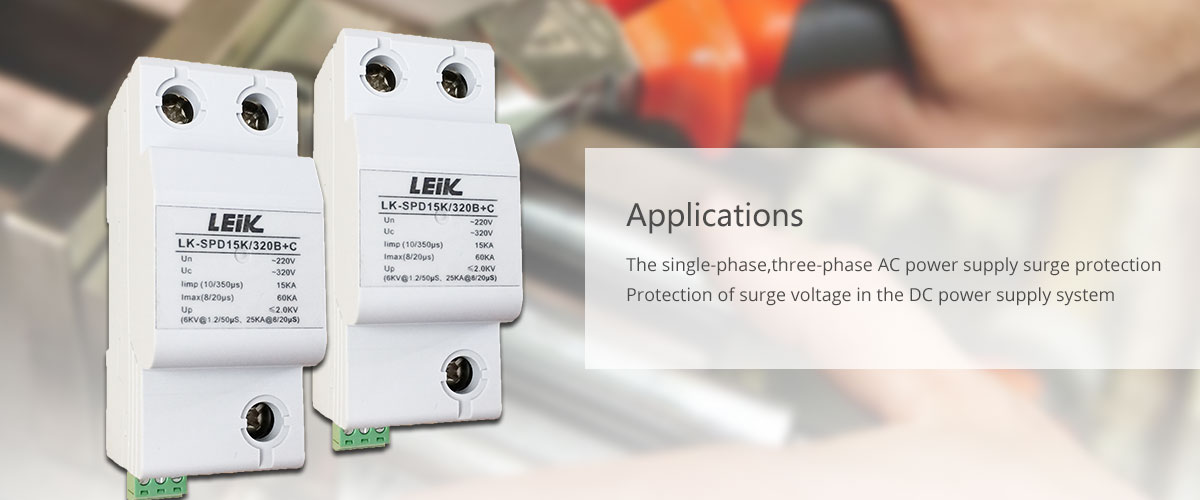

Applications

L-L、L-N、L-PE、N-PE

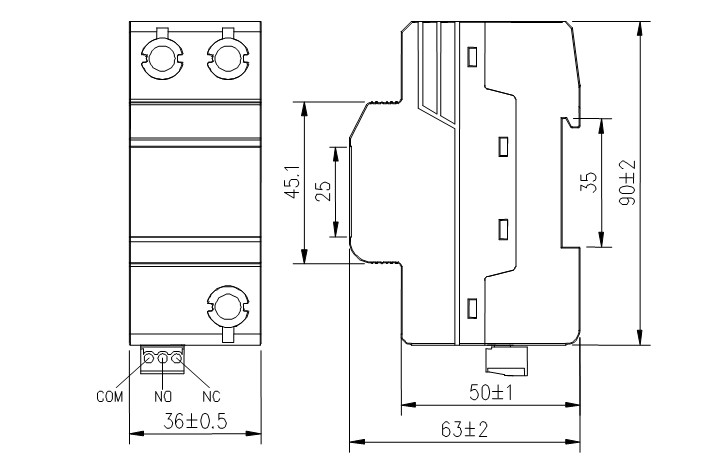

Mounting

35mm   DIN-rail

IP level

IP20

Remote

NC常闭，COM公共点，NO常开

Operation and   storage temperature

-40～+85

°C

Weight

~170

g

Climatic category (IEC 60068-1)

40/90/21
