PDU rack mounted power supply lightning protection socket
Production introduction

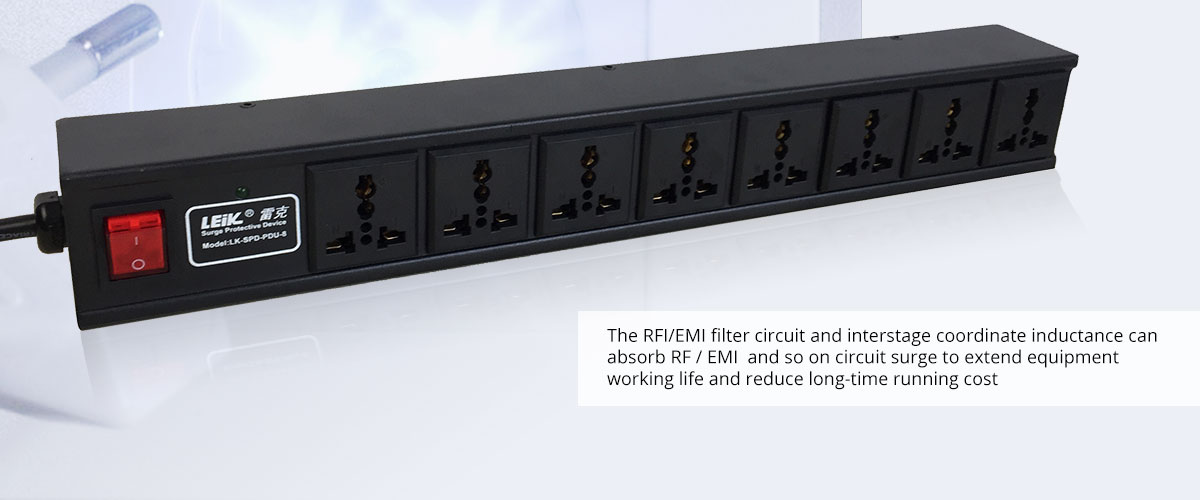

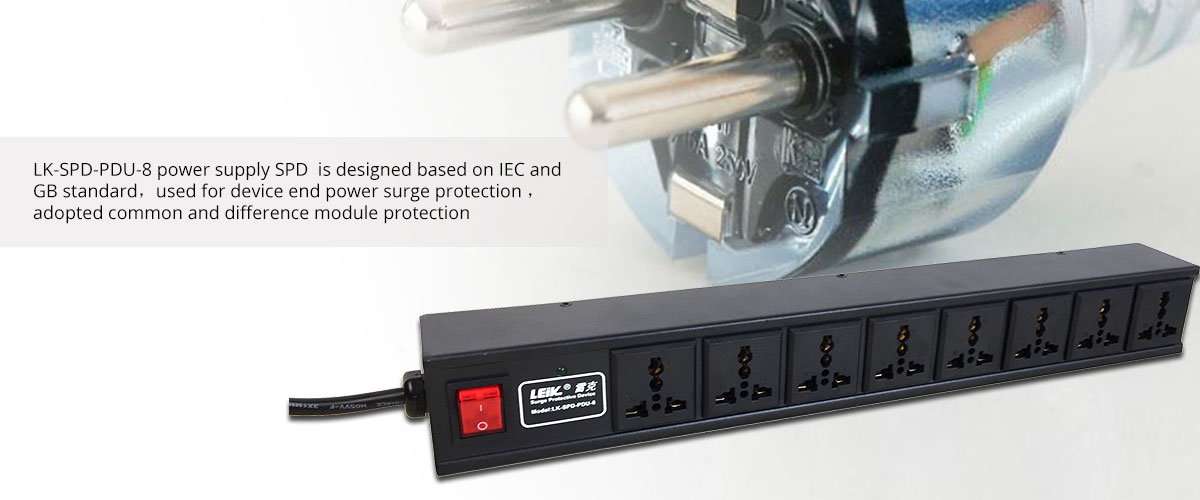

LK-SPD-PDU-8 power supply SPD is designed based on IEC and GB standard，used for device end power surge protection ，adopted common and difference module protection . SDP perfects match power adapter through socket configuration. The RFI/EMI filter circuit and interstage coordinate inductance can absorb RF / EMI and so on circuit surge to extend equipment working life and reduce long-time running cost

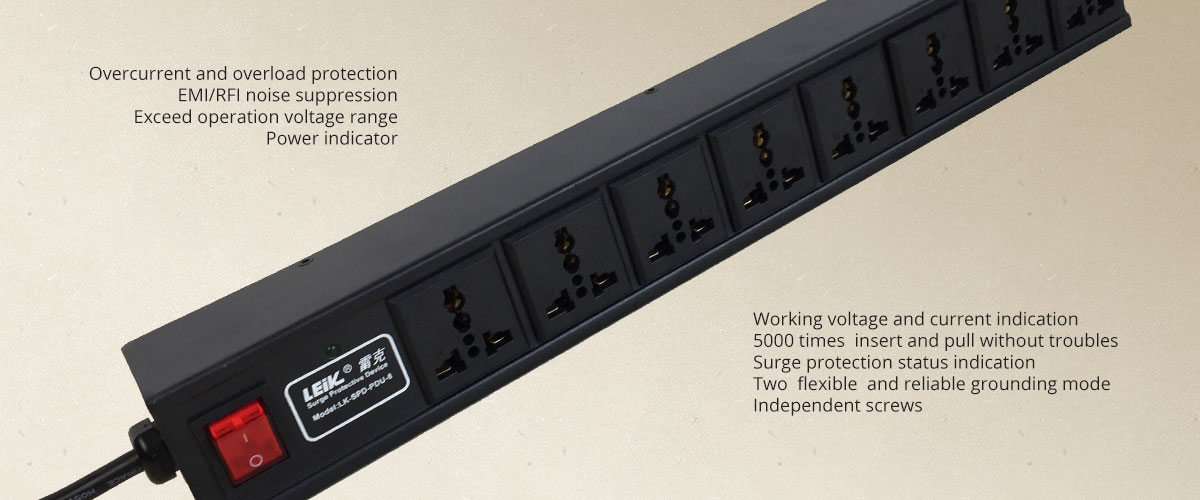

Product Features
Overcurrent and overload protection
EMI/RFI noise suppression
Exceed operation voltage range
Power indicator
Working voltage and current indication
5000 times insert and pull without troubles
Surge protection status indication
Two flexible and reliable grounding mode
Independent screws
Performance parameter
Model | LK-SPD-PDU-8 |
SPD Port | 2 |
SPD Category | Combined |
Power System | 220V exchange single power supply system |
Nominal Voltage Un | 220V |
Maximum Continuous –Running Voltage Uc | 385V |
Rated load current IL | 16A |
Rated Power | 3500W |
Every Line Nominal Discharge Current In(8/20μs) | 5kA /5kA /5kA (L-N /-LG /N-G) |
Every Maximum Discharge Current Ima(8/20μs) | 10kA/ 10kA/ 10kA (L-N/ -LG/ N-G) |
Protection Level UP(8/20μs) | <1.3kV |
RFI/EMI Filtering | uln15k-20MHz 4-40dB |
Response Time | ≤25ns |
Connecting Lead | 16A/250V 3 cores(3*1.5); 2.0 meter |
Lose Efficacy | Green: normal. Burn out : lose efficacy |
Output | 8P universal hole |
Installation | Rack- mounted installation |
Working Temperature | -40/850C |
Housing Material | Thermoplastic material，meet UL94 V-0 |
Housing Protection Level | IP20 |
Authentication | Support |
Product Model
LK-SPD-PDU-8
Product application range
Weak current environment ,computer room device ,monitoring machine room, firefighting machine room ,telephone exchange machine room and other weak current machine room

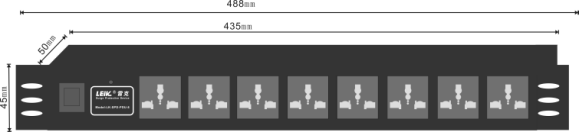

Product specificationP

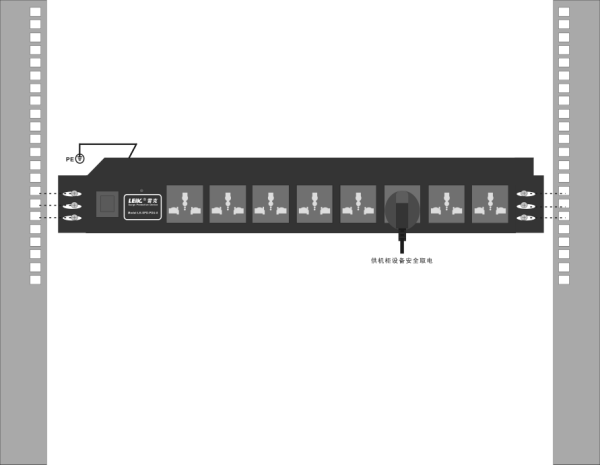

Product Installation Instruction
