Public Broadcasting-Audio Signal Surge Protection Device

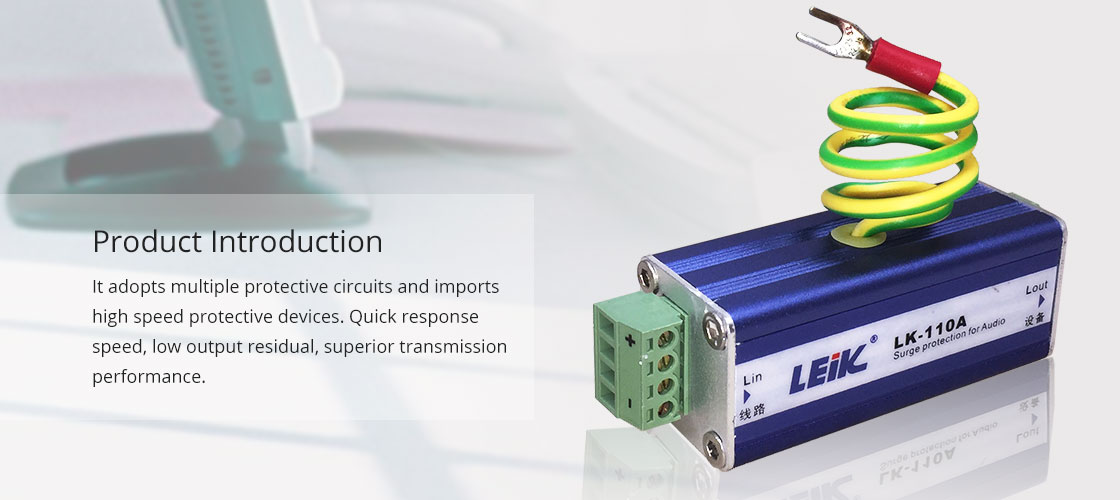

Product Introduction

LEIK audio signal SPD is designed according to IEC and related lightning protection standards. It adopts multiple protective circuits and imports high speed protective devices. Quick response speed, low output residual, superior transmission performance.

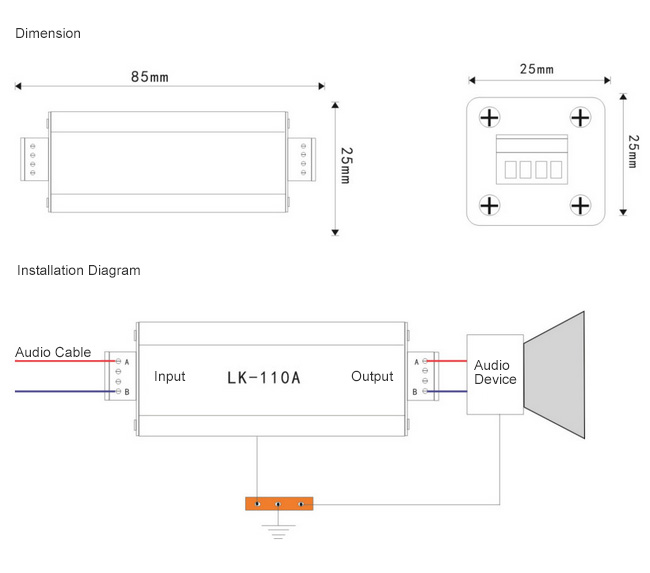

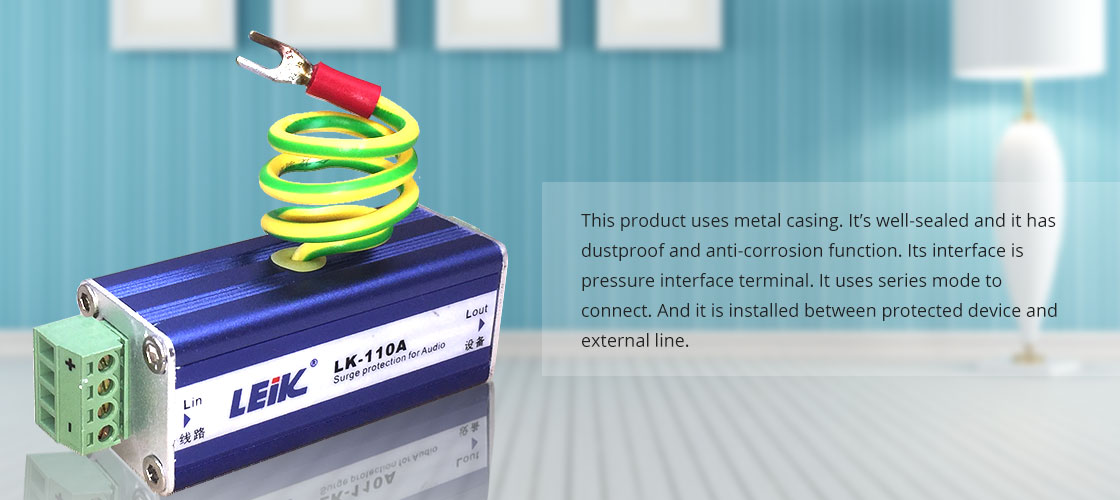

This product uses metal casing. It’s well-sealed and it has dustproof and anti-corrosion function. Its interface is pressure interface terminal. It uses series mode to connect. And it is installed between protected device and external line.

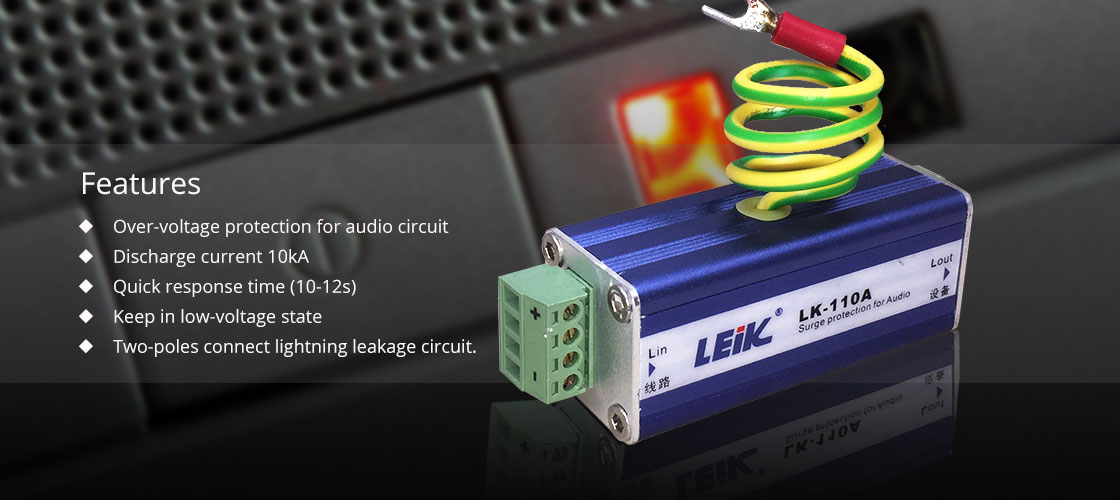

Features

◆  Over-voltage protection for audio circuit

◆  Discharge current 10kA

◆  Quick response time (10-12s)

◆  Keep in low-voltage state

◆  Two-poles connect lightning leakage circuit.



Technical Specification

Model

Type

LK-110A

Rated   operational voltage

 Un

110V

Maximum   sustainable operating voltage

 Uc

180V

Nominal   discharge current (8/20μs)

Wire/Wire

In

350A

Wire/Ground

5KA

Maximum   discharge current (8/20μs)

 Imax

10KA

Voltage   protection level (In)

Wire/Wire


≤330V

Wire/Ground


≤600V

Transmission   rate

fg

10Mbps

Interface   type


Pressure  Interface Terminal

Protection   type


Wire—Wire,Wire—Ground

Casing   material


Aluminium alloy

Insertion   loss

lL

<0.2dB



Application

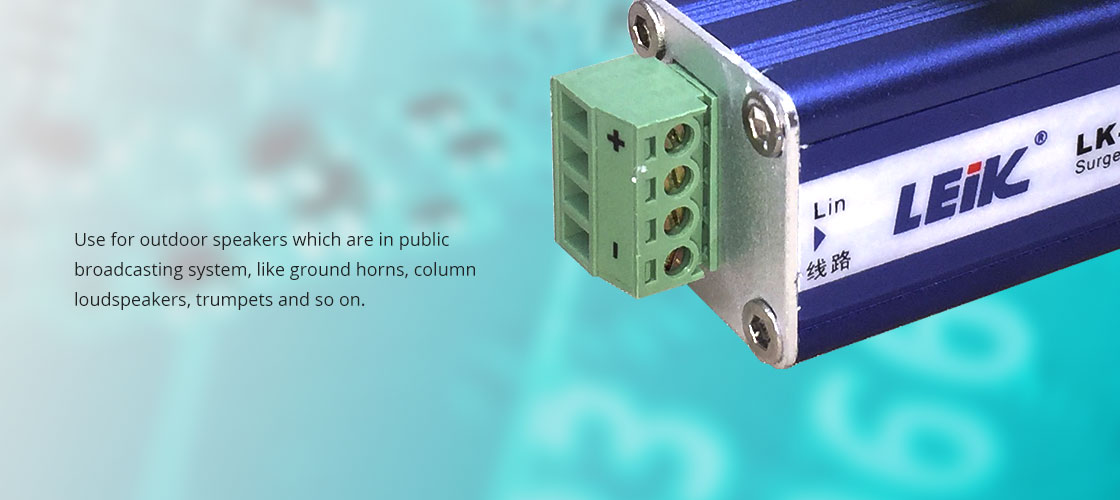

Use for outdoor speakers which are in public broadcasting system, like ground horns, column loudspeakers, trumpets and so on.
